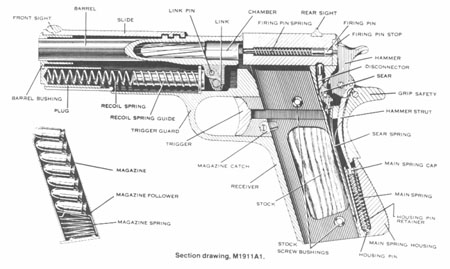

This is a 1911A1 cut-away drawing in high detail.  If you have an interest in the M1911A1 pistol, this is an excellent resource.  The 1911A1 cut-away drawing shows all of the internal details of the classic pistol.  This is a 1911A1 cut-away drawing, not a 1911 cut-away drawing.  However, most of the changes between the two do not have any bearing on this 1911A1 cut-away drawing.

1911A1 cut-away drawing

1911A1 cut-away drawing
